VigilLink 1x2 HDMI 2.0 Splitter Distribution Amplifier /w Audio De-embedded & Downscale 18Gbps / VLSP-AS12H20

The 1x2 HDMI 2.0 Splitter simultaneously routes one HDMI source to two HDMI displays. Supporting resolutions up to 4K2K@60Hz (4:4:4) and HDCP 2.2. The VLSP-AS12H20 can extract audio from the HDMI source to optical and analog outputs. Selecting: COPY, AUTO modes EDID settings. Output supports bypass and downscale(4K->1080P) functions.

Featured Highlights

• HDMI 2.0b, HDCP2.2/HDCP1.4 compliant.

• Supports HDMI resolution the maximum up to 4K2K@50/60Hz (4:4:4)

• Supports digital and analog audio extract output from HDMI source.

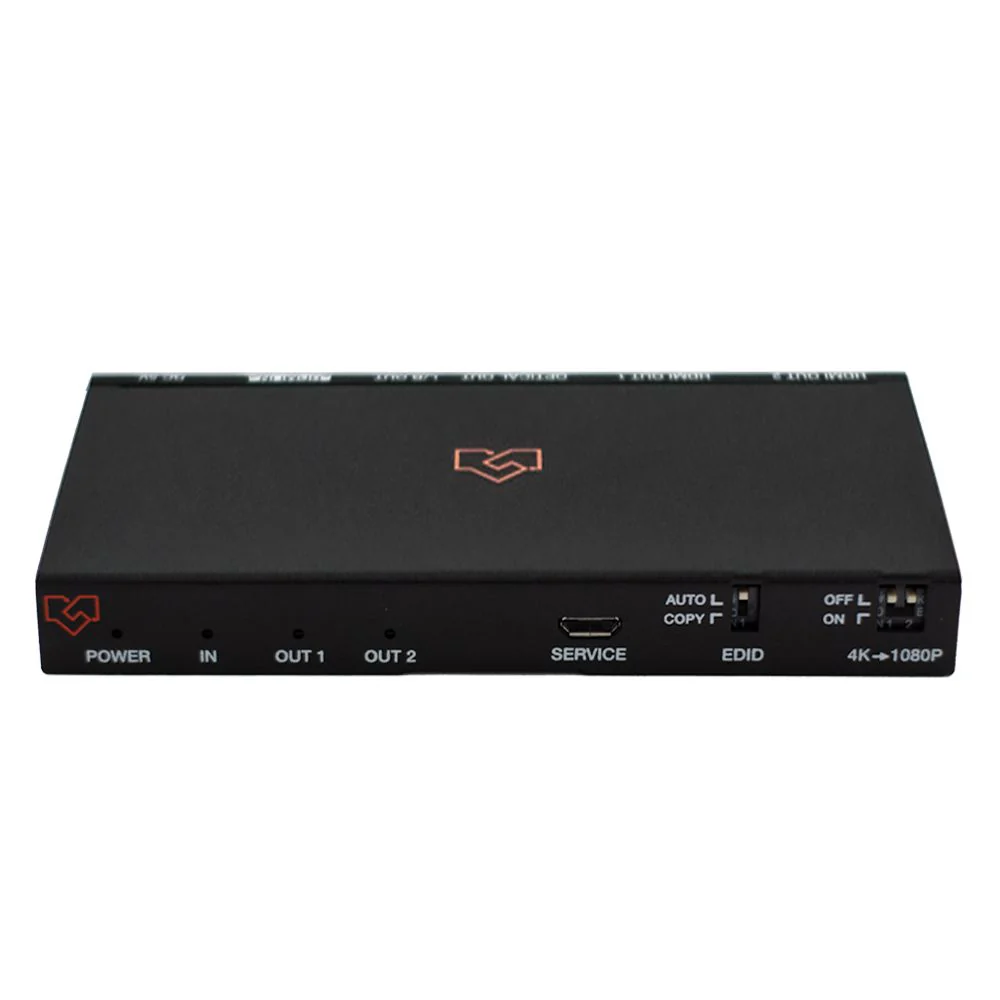

• Supports output bypass and 4K->1080P downscale function via dial switch on the panel.

• EDID can be selected COPY and AUTO modes via the dial switch on the panel.

• Supports HDMI audio format LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

Specifications

Technical
HDMI Compliance	HDMI 2.1
HDCP Compliance	HDCP 2.2 and HDCP 1.4
Video Bandwidth	18Gbps
Video Resolution	720P50/60Hz, 1080P50/60Hz, 4K2K24Hz, 4K2K30Hz, 4K2K@50/60Hz (4:4:4)
Color Depth	4K60Hz 8-bit, 1080P 12-bit
Color Space	RGB, YCbCr 4:4:4, YCbCr 4:2:2
HDMI Audio Formats	LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
L/R Audio Formats	PCM 2.0
Optical Audio Formats	LPCM [2.0/2.1]CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1
ESD Protection	Human-body Model： ±8kV (Air-gap discharge) , ±4kV (Contact discharge)
Connection
Input ports	1× HDMI Type A [19-pin female]
Output ports	2× HDMI Type A [19-pin female] 1× L/R Audio out [3.5mm Stereo Mini-jack] 1× Optical out [S/PDIF]
Mechanical
Housing	Metal Enclosure
Color	Black
Dimensions	120mm(W)×62.5mm(D)×14mm(H)
Weight	166g
Power Supply	Input: AC100 - 240V 50/60Hz, Output: DC5V/1A (US/EU standard, CE/FCC/UL certified)
Power Consumption	2.8W (max)
Operating Temperature	0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature	-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity	20 - 90% RH (No condensation)
