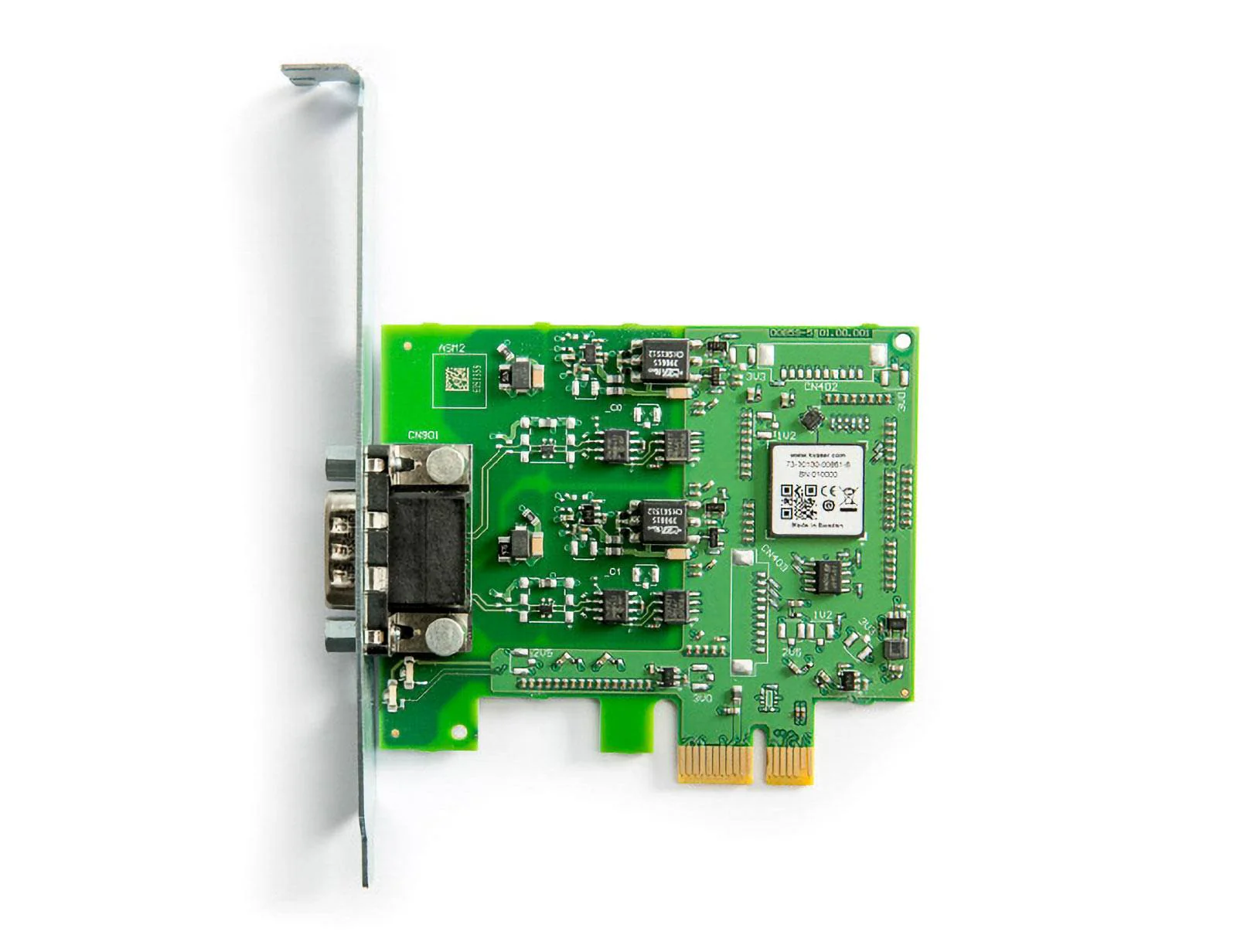

Kvaser PCIEcan 2xHS v2 is a highly integrated, high speed controller area network (CAN) network card that adds two high speed (ISO 11898-2 compliant) CAN channels to any standard computer board with PCI Express capability. At 86 x 69 mm, this has a smaller form factor and lower profile than the Kvaser PCIEcan 2xHS and includes a DS9 to 2xDS9 splitter cable.

Offering silent mode, error frame detection/generation and an on-board buffer, this add-on board fits many embedded data acquisition systems and is CAN FD compliant.

Major Features

Standard (PCIe-x1) PCI Express interface.
Quick and easy plug-and-play installation.
Supports High Speed CAN (ISO 11898-2) up to 1Mbit/s.
Supports CAN 2.0 A and CAN 2.0 B active.
Supports CAN FD up to 8Mbit/s (with proper physical layer implementation).
Low profile card allows ultra-compact systems.
Includes low and high profile brackets.
Implements Kvaser’s CAN IP in an FPGA, resulting in high max message rate.
Two CAN Hi-Speed channels in a single 26-pin HD D-SUB CAN connector. The HD26 splitter connects to the CAN bus via two 9-pin DSUB connectors.
Yellow LEDs indicate when a CAN message was received or sent.
Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet.
Fully compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.
Supports silent mode for analysis tools – listens to the bus without interfering.
Detection and generation of error frames and remote frames.
Designed for standard and industrial computers.
Galvanically isolated CAN bus drivers.
Extended operating temperature range from -40 to 85 °C.

Warranty

2-Year Warranty from Kvaser

Software

Documentation, software and drivers can be downloaded for free at www.kvaser.com/downloads.
Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, Java, Python and Visual Basic.
All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
J2534 Application Programming Interface available.
RP1210A Application Programming Interface available.
On-line documentation in Windows HTML-Help and Adobe Acrobat format.

Specifications

Mfg. Part Number

73-30130-00861-8

Technical Specifications

Bitrate: 50-1000 kbps
Certificates: CE, RoHS
Channels: 2
Connectors: DSUB 9
Current Consumption: “Typically 700 mW idle plus max 150 mW per channel, i.e. max 850 mW for a single channel interface. Only uses 3.3 V.”
Error Counters Reading: Yes
Error frame generation: Yes
Galvanic Isolation: Yes
Height: 20 mm
Interfaces: PCI Express
Length: 86 mm
Message rate maximum: 20,000 (both send and receive)
OS: Linux, Win 7, Win Vista, Win 8, Win 10
Silent mode: Yes
Sound: No
Temperature Range: -40 to 85 °C
Timestamp Resolution: 1 µs
Weight: 48 g
